Casement Window Series: What Is An 88 Casement Window?

Time:Reading Volume:179

What is an 88 casement window?

"88mm casement window" refers to a casement window that uses the broken bridge aluminum series profiles with a profile depth of approximately 88mm. Specifically:

1.What does "88" mean?

Here, the "88" usually indicates that the cross-sectional depth of the aluminum profile for the window frame or sash is approximately 88 mm. A deeper cross-section provides better structural rigidity and can accommodate a wider cavity for insulating glass, enhancing insulation, soundproofing, and wind resistance performance.

2.Broken Bridge aluminum material

The 88 series usually falls under the category of insulated aluminum (heat-insulating aluminum alloy): Polyamide insulation strips are embedded on the inner side of the aluminum profiles, separating the indoor and outdoor aluminum materials, significantly reducing heat conduction.

Combined with multi-layer insulating glass and multiple sealing strips, the entire window has excellent insulation, soundproofing and anti-condensation effects.

3.Casement Functionality

A casement window is hinged along one vertical side (left or right), allowing it to swing fully open in or out. Typical installations are “inward-opening” (the sash swings inside the room) or “outward-opening” (it swings outside).

Casements offer unobstructed ventilation (the entire sash area can open) and are generally easier to clean, since you can reach both glass faces from inside when it swings inward.

4.Key Advantages

Structural Strength & Wind Resistance: An 88 mm profile—with appropriately thick walls (commonly 1.6–2.0 mm)—resists deformation under high wind loads. This makes it suitable for large-span windows or high-rise façades.

Thermal Insulation: The combination of a deep thermal-break profile plus a ≥24 mm insulating‐glass unit (e.g., 6 mm glass + 20 mm spacer + 6 mm glass) yields excellent U-value (low heat transfer).

Sound Insulation: Three sealing gaskets (one on the outer edge of the sash, one in the middle chamber, and one on the interior edge) plus thick double-glazing can achieve noise reduction levels above 40 dB in many installations.

Security & Durability: Multi-point locking hardware (locking at top, middle, and bottom) combined with robust hinges (rated for 13–18 mm sash thickness) creates a secure, tamper-resistant assembly that also resists wear over time.

5.Typical Configuration

Profile Depth: Commonly, the frame (“outer” profile) is 80 mm deep, while the sash (“moving” profile) is 88 mm deep. Some manufacturers also offer 88 mm for both frame and sash.

Glass Unit: A popular choice is 5 mm + 18 mm + 5 mm (for a total IGU thickness of about 28 mm) or 6 mm + 20 mm + 6 mm (about 32 mm total). A low-E coating and argon fill further boost performance.

Hardware:

  • Hinges: Concealed or exposed butt hinges rated for 13–18 mm sash wall thickness. They allow the sash to open 90° or more.
  • Multi-Point Locking System: Typically three to five locking points actuated by a single handle; this ensures the sash seals uniformly against its frame.
  • Handles: Ergonomically shaped levers in finishes such as champagne, graphite, or matte black.

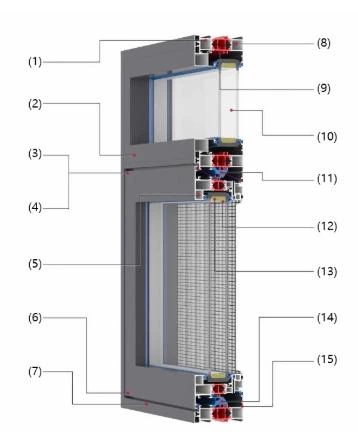

Characteristics

Casement Window Series: What Is An 88 Casement Window?

(1) The wall thickness of the profile is 1.8mm.

(2) Zinc alloy reinforcing ribs are installed at the connection between the outer frame and the column, significantly enhancing the strength and waterproof performance of the connection.

(3) The outer frame, middle frame, auxiliary frame, and window sash are all connected using Q-type injection angle brackets, which is highly efficient and results in smoother corners.

(4) The injection process uses pin injection technology, making the structure more stable. The TBS two-component metal adhesive is injected, and the profile connection area is coated with profile adhesive.

(5) The window sash with glass is designed with an external mounting strip, so there is no joint connection when opening the window from the inside, making the entire window more aesthetically pleasing.

(6) The inner and outer corner sash surfaces are all processed with chamfering to prevent scratches on clothes, bumps, and to protect children's safety.

(7) The interior and exterior use flat frame design, making the entire window interior and exterior smooth and simple, enhancing the beauty of the window.

(8) The five-chamber structure design provides superior performance in five aspects (air tightness, water tightness, insulation, sound insulation, and wind pressure resistance).

(9) The nylon insulation strip uses a 35.3mm ultra-wide custom insulation strip, resulting in better insulation performance.

(10) 5mm + 27A + 5mm, with an extra thick hollow structure, has excellent sound insulation and heat insulation performance.

(11) The opening window sash adopts a four-seal design, breaking through the traditional three-seal design, significantly improving the insulation and sound insulation performance of the entire window.

(12) Fluorocarbon hollow aluminum strips, with an integrated bending process, prevent the oxidation of the hollow aluminum strips; optional warm edge strips are available.

(13) Molecular sieve desiccant is added to effectively prevent fogging, condensation, and frosting of the insulating glass.

(14) The middle rubber strip of the opening sash uses a full-foaming continuous bending process, with no seams at the corner, improving the waterproof performance and aesthetics of the entire window.

(15) The displacement drainage structure and equal pressure drainage principle ensure smoother drainage, avoiding the backflow of rainwater from the pressure tank during typhoons. The effect is better than the invisible drainage design.

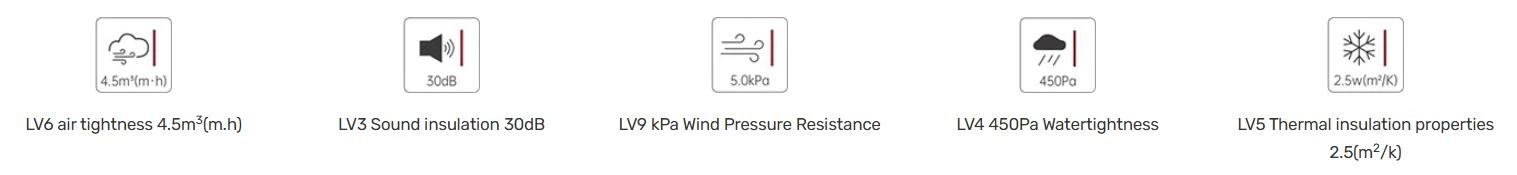

 Performance parameter

Casement Window Series: What Is An 88 Casement Window?Scientific Design · Solving Large Area Openings

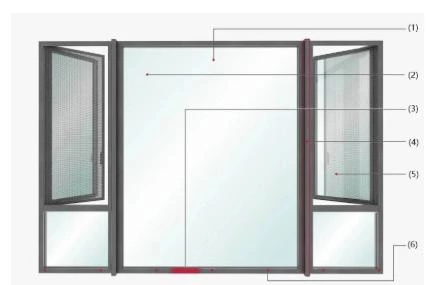

Sliding window large opening scheme

Casement Window Series: What Is An 88 Casement Window?

(1)The maximum thickness of insulating glass can be made:12mm+27A+12mm

(2)The maximum area of a single solid glass is 18m2

(3)Steel lining reinforcement in the cavity of thewindow frame

(4)Strengthen the window frame by adding areinforced middle stile

(5)The maximum opening sash can be 2800mm The maximum opening sash width can be 1000mm The maximum glass thickness can be 55mm

(6)The pressure wire is fixed with screws with a screw every 400mm to enhance thewind pressure resistance of the window.

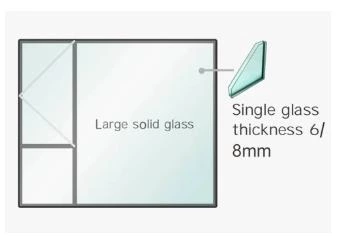

Wind load in the inland region of central China: 300-500N/m2

Casement Window Series: What Is An 88 Casement Window?

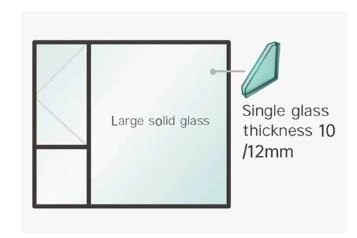

Wind load in the coastal areas of South China: 500-800N/m2

Casement Window Series: What Is An 88 Casement Window?
