Full Guide To Replacing Garage Doors: Ensuring Safer And More Convenient Vehicle Access
Time:Reading Volume:36
introduction
Garage doors are an important component of home or commercial garages. They not only affect the smoothness of daily use but also are related to the safety of vehicles and property. As the years of use increase, door aging, drive system failure or appearance damage will all affect the function. This article will provide you with a detailed explanation on how to successfully complete the replacement of garage doors from five aspects: the necessity of replacement, the type of door body, the construction process, the cost budget, and the later maintenance.
Assessment of the necessity of replacement
1.Aging and deformation of the door body
The hinge is loose or broken, causing abnormal noises or even getting stuck when opening and closing.
The panel has dents and cracks, and the sealing performance has declined, allowing rainwater to seep in.
2.Drive system failure
Increased motor noise, weak start‑up or frequent stalling;
The remote control malfunctions or the safety sensor fails, posing a safety hazard.
3.Energy conservation and insulation requirements
The old door has poor heat insulation and heat preservation performance, and the indoor heat loss is serious in winter.
The new type of garage door adopts inflatable foaming or multi‑layer structure, which can significantly enhance the insulation effect.
4.Appearance and style upgrade
Update the panel color, texture or pane design to coordinate with the home style;
While the safety performance is enhanced, it also adds value to the house.
Types of garage doors and key points for selection

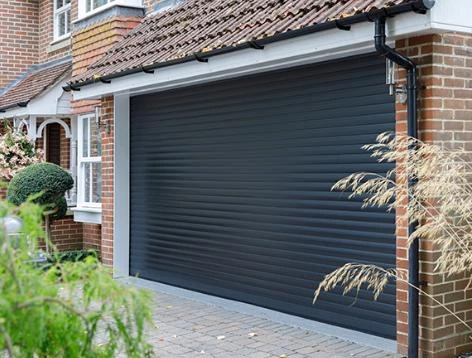

1.Roller shutter door
Structure: Aluminum alloy or steel coil plate, which occupies less ceiling space after being rolled up.
Advantages: Quick opening and closing, space‑saving; suitable for scenarios where space is tight or quick opening is required.

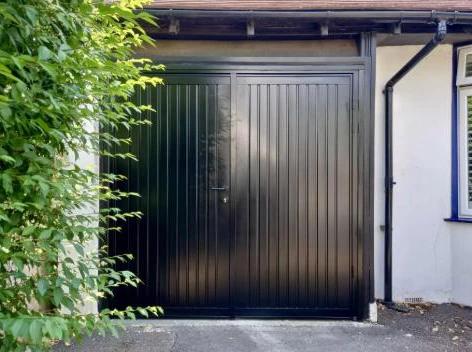

2.vertical hinged door
Structure: Hinged door panels on both the left and right sides, which can be opened by sliding or swinging.
Advantages: Simple manufacturing process and convenient maintenance; suitable when the garage opening is small or the decoration style is uniform.
3.up‑and‑over door
Structure: The entire door leaf is flipped upwards and closely adheres to the garage ceiling.
Advantages: Does not occupy space on both sides when opened, and the thickness of the door leaf can be increased as needed for insulation.

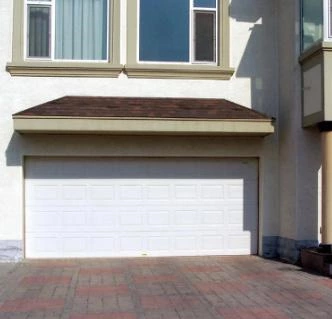

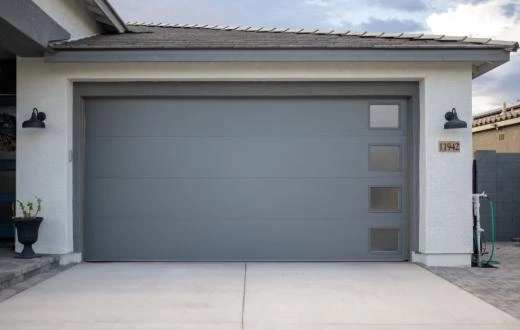

4.Segmented sliding door
Structure: It is composed of several panels connected by hinges and slides into the ceiling along the guide rails.
Advantages: Can be highly integrated with the transmission system, providing a smoother start‑up and lower noise.
5.Practical Audio‑Visual Technique
Material and thickness: The thickness of the steel plate and the wall thickness of the aluminum alloy profile determine durability.
Thermal insulation performance: Foam or thermal break structure is selected to enhance energy‑saving effect;
Safety device: Equipped with anti‑pinch function and emergency power‑off manual opening device;
Drive brand: Select well‑known motor manufacturers for more reliable warranty and after‑sales service.
Change the construction process
1.On‑site measurement and scheme confirmation
Accurately measure the width, height of the door opening and the depth of the ceiling;
Determine the type of door body, the driving mode and the location of safety accessories.
2.The old door was demolished
Cut off the power supply and release the spring tension;
Disassemble the door leaf, hinges, guide rails and motor.
3.Embedded and installed brackets
Embed base bolts in the wall or ceiling to ensure they are level and vertical.
Install the side guide rails, top support beams and motor brackets.
4.Door leaf and system debugging
Install the new door leaf into the guide rail and adjust the tension of the balance spring.
Install the drive motor and control box, wire the wires and test the opening and closing.
Adjust the limit switch, anti‑pinch device and safety sensor.
5.Acceptance and cleaning
Multiple opening and closing tests were conducted to confirm that the operation was stable and the safety devices were normal.
Clean up the construction site and carry out paint repair and anti‑rust treatment.
Cost budget and precautions
1.Material cost
Door body: Depending on the material and thickness, the price range is usually between $800 and $2000.
Drive system: Basic motors $300–$600, high‑end intelligent motors can reach over $1000.
Accessories: Guide rails, sealing strips, safety sensors, etc. Approximately $200–$400.
2.Labor and Installation
It varies depending on the region and the difficulty of construction, generally ranging from $300 to $800.
It is recommended to choose a qualified professional team to ensure safety and quality.
3.value‑added services
Intelligent upgrade (mobile phone/remote control linkage, timed on/off) is subject to additional payment.
Additional budget is also required for adding thermal insulation or soundproofing accessories.
4.Warm prompt
Please verify the local fire and community regulations before the renovation.
After installation is completed, keep the warranty certificate and carry out regular maintenance.
Post‑maintenance and upkeep
1.Lubricate the hinges and guide rails regularly
Apply special slide rail oil or silicone oil every quarter to keep the opening and closing smooth.
2.Check the spring and balance system
Have professionals check the spring tension every six months to prevent accidental breakage.
3.Clean the door panels and sealing strips
Wipe the door surface with neutral detergent to remove accumulated dust.
Replace the aging sealing strips to prevent water seepage and air leakage.
4.Test the safety device
Regularly simulate clamping people or obstacles to test the anti‑clamping function;
Check whether the photoelectric sensor at the bottom of the door is sensitive.
Epilogue
The replacement of garage doors is not only a hardware upgrade, but also an investment in safety and comfort. Through the comprehensive guidance in this article, you can have a clearer understanding of the replacement process, key points for selection and maintenance methods, ensuring the long‑term stable operation and complete functions of the garage door. It is hoped that this guide can provide you with practical reference for the replacement of your garage door.
